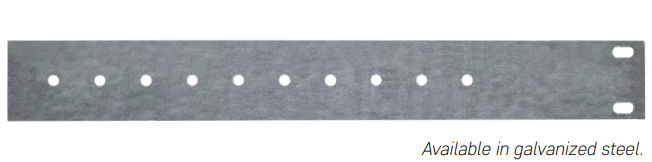

Transducer Mount Bracket, TMB-1

Wall Mount Adaptor, WMA



Install the Transducer (T), either horizontally in the ceiling or vertically inside a wall. First, use the supplied nut and bolt to connect the two parts at the desired width. Then, use the Transducer center bolt and plate to attach it to the completed bracket. Mount the entire assembly to the gypsum braces. During gypsum install, use the double-sided tape included with the Transducer to secure its foot to the gypsum. The thick steel bracket helps press the Transducer against the gypsum.






Product Sheet

  Print this information by downloading our product sheet

Download PDF File

Specifications

Physical Specifications

Dimensions

See above diagrams

Adjustment Range

10 positions in 2.5-cm (1-inch) increments, providing an overall range of 40.6 to 63.5 cm (16 to 25 inches

Material

18-gauge galvanized steel

Weight

0.3 kg; 0.7 lbs

Mounting



Bracket to Bracket

1 x 8-32 bolt and locknut (included)

Attachment to Transducer

Use Transducer center bolt and plate

Suspension to Gypsum Braces

4 slotted openings available (hardware not included)

Warranty

5 years, see LogiSon® Product Warranty

Certifications

Meets UL and CE standards; RoHS compliant
