Loudspeakers

A loudspeaker is suspended from each hub. Though LogiSon® loudspeakers are usually located above a suspended ceiling, we offer a range of models to accommodate your needs.

Content coming soon.

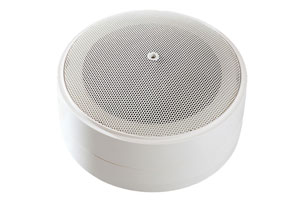

Loudspeaker, LA-1

Loudspeaker, LA-1

A loudspeaker is suspended from each hub and used to broadcast masking, paging and/or music. The LA-1 model is flexible and used throughout most LogiSon Acoustic Network installations.

The full-range driver provides output exceeding the typical masking spectrum of 100 to 5,000 Hz, including the lower frequencies that are most needed for comfort.

A custom clip allows the length of chain to be adjusted without tools. You can also replace the chain with an attractive braided steel cable. Slack cable retracts into the enclosure, ensuring tidy installation.

The LA-1 model is available in white or charcoal grey.

About loudspeaker installation

LogiSon Acoustic Network loudspeakers are typically installed facing upward, above the ceiling tiles. The indirect transmission of the masking sound results in broad, uniform coverage.

When the LA-1 loudspeaker is installed in gypsum or another type of hard ceiling, we use a ceiling mount adapter.

Wall-mounted and under-floor models are useful in situations where it is impossible to access the ceiling or suspend anything in it.

Product Sheets

  Print this information by downloading our product sheet

Download PDF File

Specifications

Audio Performance

Masking Output

87 dBA maximum

Paging Output

87 dBA maximum

Driver Specifications

Frequency Range

90 to 10,500 Hz

Dimension

10.1 cm; 4 inches

Power Handling

25 W (RMS)

Sensitivity

88.6 dBA @ 1W / 1m

Magnet Structure

510 g; 18 oz

Impedance

16 ohms

Connections

Loudspeaker Input

2-pin

Cabling

Loudspeaker to Hub

Integrated cable assembly

Physical Specifications

Dimensions (W x H)

16.5 x 9.0 cm; 6.5 x 3.5 inches

Enclosure

Plenum-rated resin

Color

White or charcoal grey

Weight

0.95 kg; 1.9 lbs

Mounting

Method

Suspend from hub or from deck

Chain Length

61 cm; 24 inches

Chain Adjustment

Tool-free clip

Loudspeaker Orientation

Upwards; tool-free reversibility to downwards if necessary

Cable Management

Slack retracts into enclosure

Warranty



5 years; see LogiSon® Product Warranty for details

Certifications



Meets UL, CE and FCC standards and is approved for use in air-handling plenums; RoHS compliant
