Power

The LogiSon® Acoustic Network consumes very little energy: typically less than a light bulb for a sound masking area of 13,500 ft2.

Content coming soon.

Power Supply, PS-3

Power Supplies, PS-3, FPS 120, 250, 500

In most regions, a Class 2 power supply must be used with a sound masking system or the cable carrying power requires conduit.

Several Class 2 models are available for use with the LogiSon Acoustic Network.

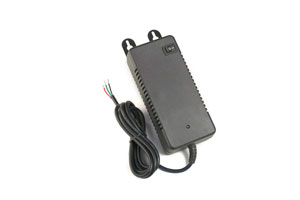

The PS-3 model is an AC/DC switching mode power supply that is used throughout most LogiSon Acoustic Network installations. It is UL Energy Efficiency Certified.



Product Sheet

  Print this information by downloading our product sheet

Download PDF File

PS-3 Specifications

Electrical Performance
Input VoltageMin 90 VAC; Max 264 VAC
Input FrequencyMin 47 Hz; Max 63 Hz
Output Voltage30 VDC
Output Power RangeMin 0 W; Max 80 W
EfficiencyMin 75%; Max 88%
Connections
InputIEC-320-C14 for worldwide applications
OutputStripped and tinned wires
Physical Specifications
Dimensions (W x H x D)        7.9 x 16.8 x 4.64 cm; 3.1 x 6.63 x 1.83 inches
ColorBlack
Weight0.680 kg; 1.5 lbs
ControlOn/off switch
MountingWall mount bracket; height with bracket is 20.1 cm; 7.9 inches
Warranty5 years; see LogiSon® Product Warranty for details
CertificationsMeets UL, C-UL, TUV, CE, ACMA (C-Tick) and FCC standards; RoHS compliant; UL Energy Efficiency Certified
