Control


Our control panel can be mounted on a wall or in an equipment closet, allowing you to manage your system’s settings and zones from a central location.


An Ethernet connection between the control panel and a PC lets you use Acoustic Network Manager software to make system changes.


The programmable keypad and accompanying remote let you easily adjust sound masking and paging settings in private offices, meeting rooms or any other on-demand situation.

Content coming soon.

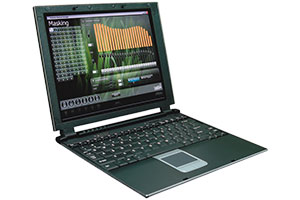

Acoustic Network Manager, ANM

Acoustic Network Manager, ANM

Acoustic Network Manager gives the administrator a level of control that is unsurpassed in the industry.

Commands can be sent to one hub, a group of hubs, or all primary hubs.

The administrator can establish the masking and paging settings, as well as the time, paging and keypad zones. There are no restrictions on the size of each type of zone and they can be non-contiguous. The administrator can also program ramp-up and timer schedules, select paging channels and create user limits for each Programmable Keypad. Hub indicators show type, status, volume and muting.

The attractive user interface is configurable to show or hide functionality based on the user or installation type. Communication is protected by 128-bit AES encryption. Settings can be saved to an electronic file or printed for record-keeping purposes.



Product Sheet

  Print this information by downloading our product sheet

Specifications

Supported Operating SystemsWindows 10
 Windows 8/8.1 Pro
 Windows 7
 Windows Vista with Service Pack 2 or later
Supported ArchitecturesX86
 X64
Hardware RequirementsComputer with 1 GHz or faster processor with 1 GB RAM or more
 Graphics parts supporting WDDM drivers (Windows Display Driver Model) recommended
 Minimum disk space (Microsoft components/Installation):
 X86 – 850 MB
 X64 – 2 GB
 Disk space (LogiSon® components): 20 MB
PrerequisitesWindows Installer 3.1 or later
 Internet Explorer 6.0 or later
 Microsoft .NET Framework 4 or later (included with Windows 8 or later)
